Plastic beach mat production lines
Every machine for weaving PP straw mats, from the straw extruder and warping machine to the computerized jacquard loom, heat cutting, edge sewing and baling, from Wenzhou Xiangyi Machinery in Aojiang, Wenzhou.
From PP pellets to baled mats
Two supplies meet at the loom: hollow PP straws for the weft, and warp yarn wound onto a beam. The woven roll is then cut to length, edge-sewn and baled.
Weft
Warp
Straw extruderLG55 Warp yarn Bought in, or made on our SJ-YS monofilament extruder
Warping machineZJ-2000
Computerized jacquard beach mat weaving machine Weaves the PP straws and the warp into patterned mat XY-KTC
Heat cutting machineXY-QDJ
Edge sewing machineGC3720
Baling press Eight loom widths, 900 to 3000 mm
Choose the loom by the width of mat you sell. Every model has the computerized jacquard: designs load from a USB stick and change at the press of a button, with no paper pattern cards.
See the XY-KTC loom- XY-KTC900 184 warp ends
- XY-KTC1200 248 warp ends
- XY-KTC1500 312 warp ends
- XY-KTC1800 376 warp ends
- XY-KTC2000 408 warp ends
- XY-KTC2200 456 warp ends
- XY-KTC2700 568 warp ends
- XY-KTC3000 632 warp ends
The machines
Every machine in the line, each with its own page.
-

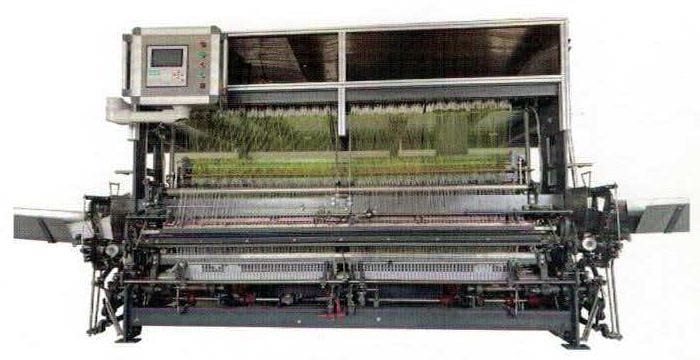

Computerized jacquard beach mat weaving machine
XY-KTC Weaving machine built for plastic beach mats, with a computerized jacquard that loads designs from a USB stick. Eight models, 900 to 3000 mm weaving width. -

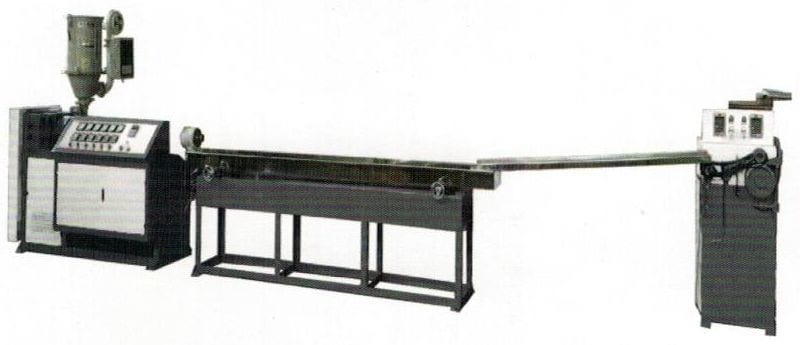

LG series plastic straw extruder
LG55 Melts PP and draws it into hollow straws -

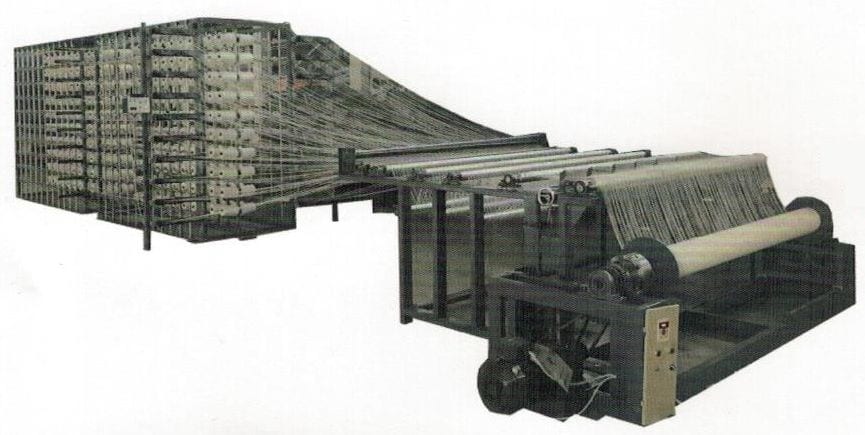

Warping machine
ZJ-2000 Winds the warp yarn onto the beam for the loom -

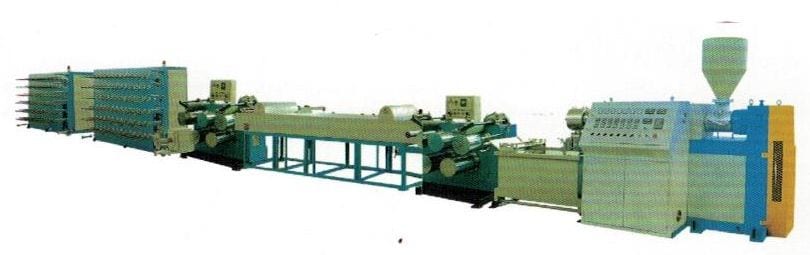

Monofilament yarn extruder
SJ-YS Makes HDPE or PP monofilament, for example for warp yarn -
Plastic beach mat cutting machine
XY-QDJ Cuts the woven roll to length with a heated cutter -

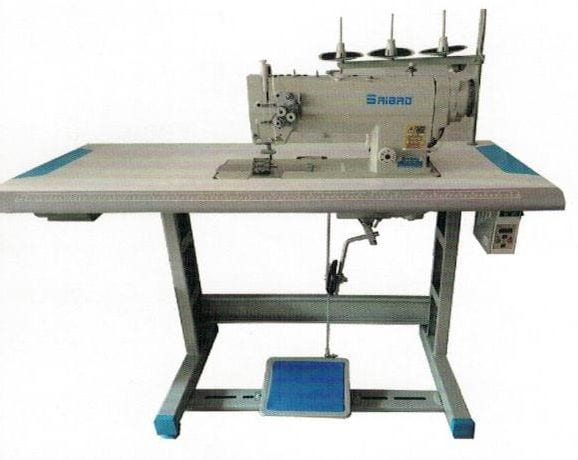

Computer direct-drive double-needle flat sewing machine
GC3720 Sews the mat edges so they do not come loose -

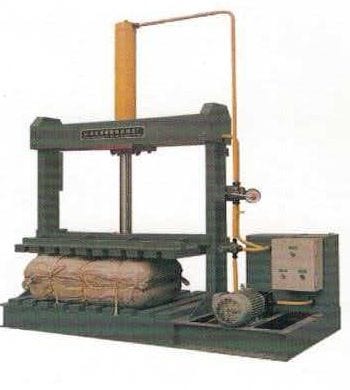

Hydraulic baling press
Presses finished mats into solid bundles
Why buy the line from us
-
One supplier for the whole line
Straw extruder, warping machine, jacquard loom, heat cutter, sewing machine and baling press from one company, with one contact for every machine.
-
Patterns without paper cards
The computerized jacquard takes digital designs from a USB stick. Switching patterns takes a few button presses on the machine instead of a new set of paper pattern cards.
-
Warp yarn as well
Our SJ-YS monofilament line makes round yarn from HDPE or PP, so the warp for your mats can be produced in-house too.
Planning a beach mat line?
Tell us the mat width and output you need, and we will put together the machines for it.
